Sydney Metro - Northwest
In June 2016 Meadows Consulting was engaged to assist the Joint Venture Partners John Holland Pty Ltd and CPB Contractors Pty Ltd on the Sydney Metro – Northwest Project.
Our engagement was to provide surveying services in relation to Track and Overhead Wiring construction on the project. The project involved the construction of 23km of new track, fixed track and also ballasted track. The conversion of 13km of existing track between Epping and Chatswood and the construction of 8 new railway stations, namely Tallawong Road, Rouse Hill, Kellyville, Bella Vista, Norwest, Showground, Castle Hill and Cherrybrook.
The project was estimated to cost $3.7 billion and was completed in 2019. Meadows Consulting Pty Ltd is pleased and proud to have been engaged on such a high profile, unique project within the greater Sydney Trains metropolitan area.
Stabling Yard
Survey Roles Provided By Meadows Consulting
- Construction of 21 new tracks
- Construction of pedestal track within the main maintenance facility
- Construction of embedded rail within the main maintenance facility
- Construction of 3 fixed slab locations
- C-CAL Survey for OHW construction
- Construction of 19 turnouts
- Conformance of capping levels
- Set Out of rail infrastructure
- Initialisation and coordination of TCM's (Track Control Marks)
- Tamping Support
Viaduct
Survey Roles Provided By Meadows Consulting
- 9.4km of fixed slab track construction
- 4.5km of ballasted track construction
- Initialisation and coordination of track control marks
- Set out of plate spacings for concrete pour
- Tamping support
- Construction of expansion switches on cable stay bridge
- C-CAL survey for OHW construction
- Conformance of capping levels

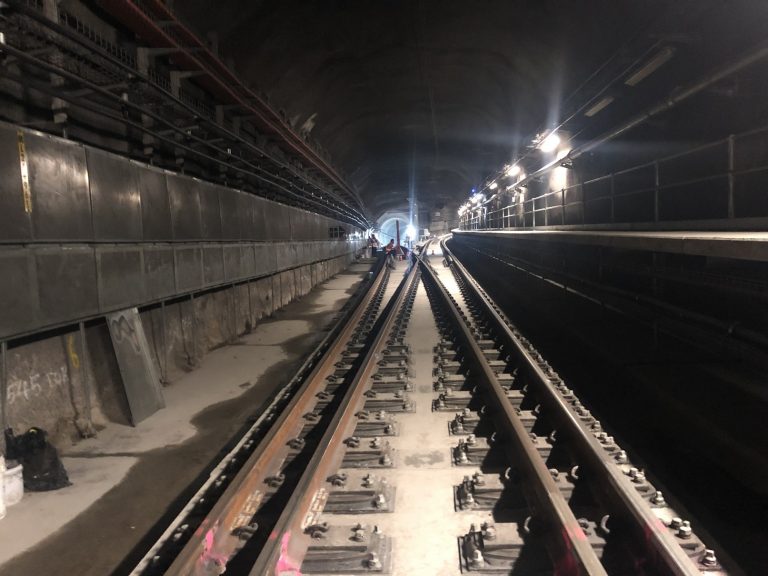

Epping Stub Tunnel
Survey Roles Provided By Meadows Consulting
- Construction of 2 turnouts - connecting existing Sydney Trains network with the new Metro track
- Construction of fixed slab track
- Control survey
- Conformance of earthworks
- OHW set out
- Construction of steel walkways
Chatswood
Survey Roles Provided By Meadows Consulting
- Control survey
- Re-alignment of existing fixed slab track
- Earthworks
- Re-alignment of existing track
- Construction of new track
Cherrybrook Station
Survey Roles Provided By Meadows Consulting
- Road construction and set out of line markings
- Set out of footpaths, kerbs, ramps, vegetation and retaining walls
- As-built survey of construction works
Rousehill & Kellyville Stations
Survey Roles Provided By Meadows Consulting
- Monitoring survey of station facades
